DESCRIPTION

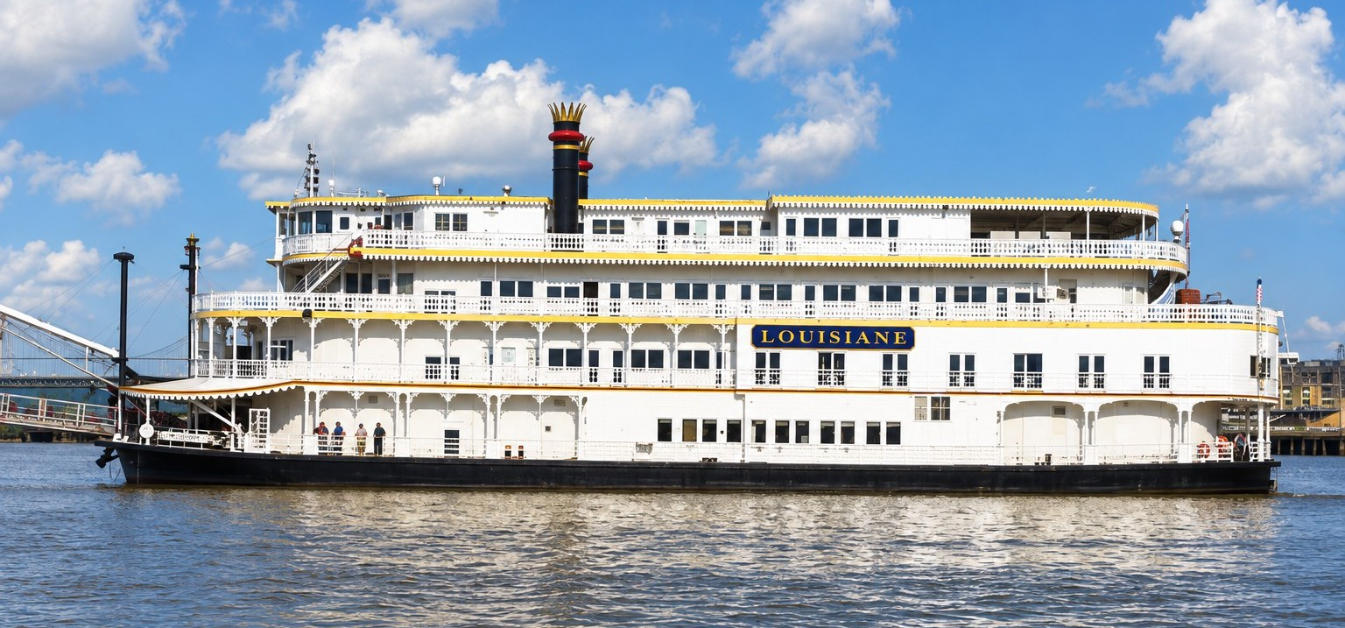

The vessel was built as an all welded steel gaming vessel complying with provisions of USCG Subchapter H (CFR 46, Parts 70 to 90), NVIC 8-93 and USCG regulations for intact and damaged stability for vessels operating on inland waters. Capacity of the vessel is 2,990 persons.

A four story enclosed superstructure is constructed above the main deck to provide for 4 decks of gaming space. The vessel is currently outfitted for 1100+ gaming spaces. Each gaming deck is comprised of 2 zones with structural fire protection boundaries. Passenger spaces entail approximately 43,000 square feet. Each passenger deck has 2 restrooms and a bar. The uppermost deck also has a food preparation/counter area. Vessel outfitted with 2 elevators. A fully outfitted pilothouse is located near the forward end of the uppermost deck. The below deck area occupies propulsion, auxiliary machinery with associated tankage, marine storage, along with various gaming support function spaces.

The main machinery consists of two diesel driven direct drive fixed propellers. Two thrusters are installed, one forward and one aft, and power is provided by diesel driven engines. An emergency generator is installed in a house on the port aft side of the uppermost exterior deck. HVAC supplied by 3 Carrier 300 ton rotary screw chillers.
